What WINK Crossroad Is

A cloud-based video management system built around two jobs: showing operators live video, and telling engineers what the platform delivering that video is actually doing.

Most VMS products stop at the first job. They put cameras in a grid and leave the health of the streaming infrastructure to a separate monitoring stack, which is why the first person to notice a broken feed is usually a member of the public. Crossroad treats viewing and monitoring as the same product, because in a distributed camera estate they are the same question asked two ways.

On the viewing side, Crossroad plays live streams distributed by WINK Media Router in any modern browser, with multi-camera layouts, PTZ control where the camera supports it, and token-authenticated access so no permanent credentials are handed out. On the monitoring side, it tracks the WINK Forge appliances doing the encoding and transcoding, the routers doing the distribution, and the individual streams flowing through both.

Underneath both sits the camera fleet itself. Crossroad holds one authoritative record per camera keyed on its VMS GUID, verifies health by decoding a real frame rather than opening a socket, governs which partner may see which cameras, and generates the encoder configuration that produces the streams it monitors. That last point is what keeps the camera record, the encoder, and the public stream URL from drifting apart.

Around all of it is the management layer: users and roles, agency and partner access, audit history, and the record of what changed and who changed it.

At a Glance

Cloud-hosted: browser access, nothing to install
Live viewing: Media Router streams in multi-camera layouts
Forge fleet visibility: appliance state, inputs, outputs
Stream-level monitoring: what is up, what is degraded, what is dark
Tracking and history: events, changes, and access over time
Management: users, roles, agencies, and partner access
Camera fleet: VMS-keyed inventory with verified health
Partner sharing: isolated endpoints and a public REST API

Capabilities

Viewing, Monitoring, Management

Live Video

Live Media Router streams in the browser
Multi-camera layouts and saved views
Token-authenticated playback (OTP)
PTZ control where the camera supports it
Per-camera snapshots for fast scanning

Forge Fleet Monitoring

Every Forge appliance in one list
Input and output stream state per unit
Reachability and version tracking
Field appliances behind NAT included
History retained, not just current state

Stream Health

Up, degraded, and dark streams surfaced
Origin and delivery checked separately
Trend view rather than a single ping
Alerting on the conditions you choose
Evidence to hand to the camera owner

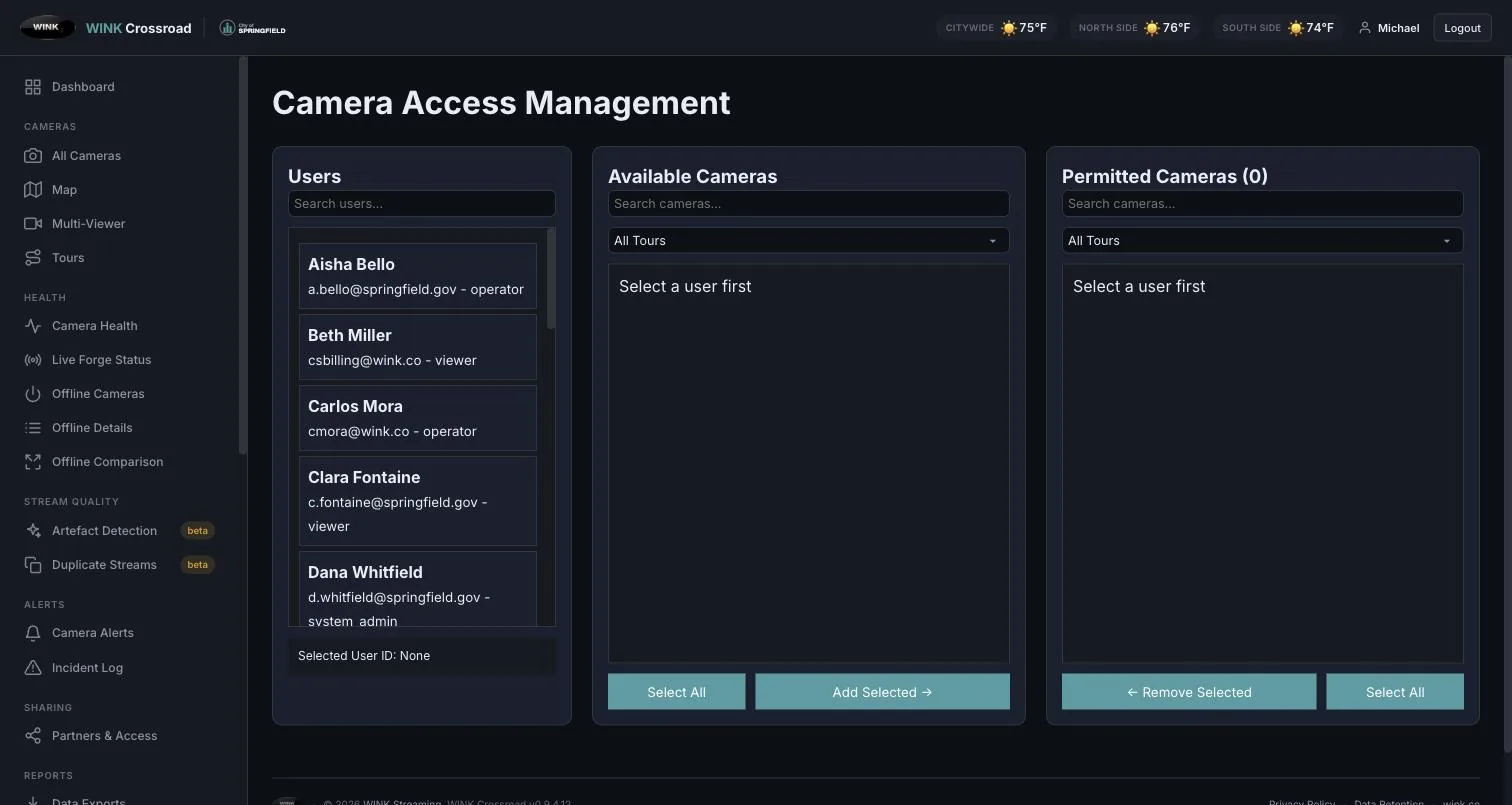

Users and Agencies

Role-based access control
Per-agency and per-camera grants
Partner access without network access
Session and activity logging
Access reviewed against the database, not the session

Tracking and Audit

Who watched what, and when
Configuration change history
Alert acknowledgement and resolution
Exportable records for reporting
Retention policy applied automatically

Integration

Native Genetec Security Center integration
WINK Archive for recorded video
WINK LiveView on mobile
Generic RTSP and HLS sources
API access for downstream systems

Built In

The Diagnostics, Without the Command Line

The analysis in our free command-line tools is the same analysis running inside the platform. The CLI versions are for a quick look from a laptop; in a production deployment, Forge, Media Router, and Crossroad do this continuously with a web UI in front of it.

RTSP packet loss and jitter analysis RTP clock drift detection HLS cache and CDN behavior Keyframe alignment checks Stream fingerprinting ONVIF discovery and camera identification SDP inspection and validation Throughput and load measurement

In the Field

An operator reporting "camera 42 looks bad" becomes a measurement rather than an argument. Crossroad already holds the packet loss, jitter, and delivery history for that stream, at the origin and at the router, so the conversation with the camera owner starts with evidence.

Before Go-Live

The same checks run during commissioning. Cameras that publish but never produce a decodable frame, streams with misaligned keyframes, and links that cannot sustain the configured bitrate are caught before the public sees them, not after.

Camera Fleet

Online Means an Image Came Back

Most monitoring calls a camera healthy when a port answers. Crossroad pulls a real decoded video frame over RTSP from every camera on a rolling cycle, and only counts it online when an image actually arrives.

That difference is what catches the cameras nothing else catches: the one that accepted the connection and streamed nothing, the one frozen on its last frame, and the one publishing a "No Video" placeholder card that satisfies every stream level check ever written.

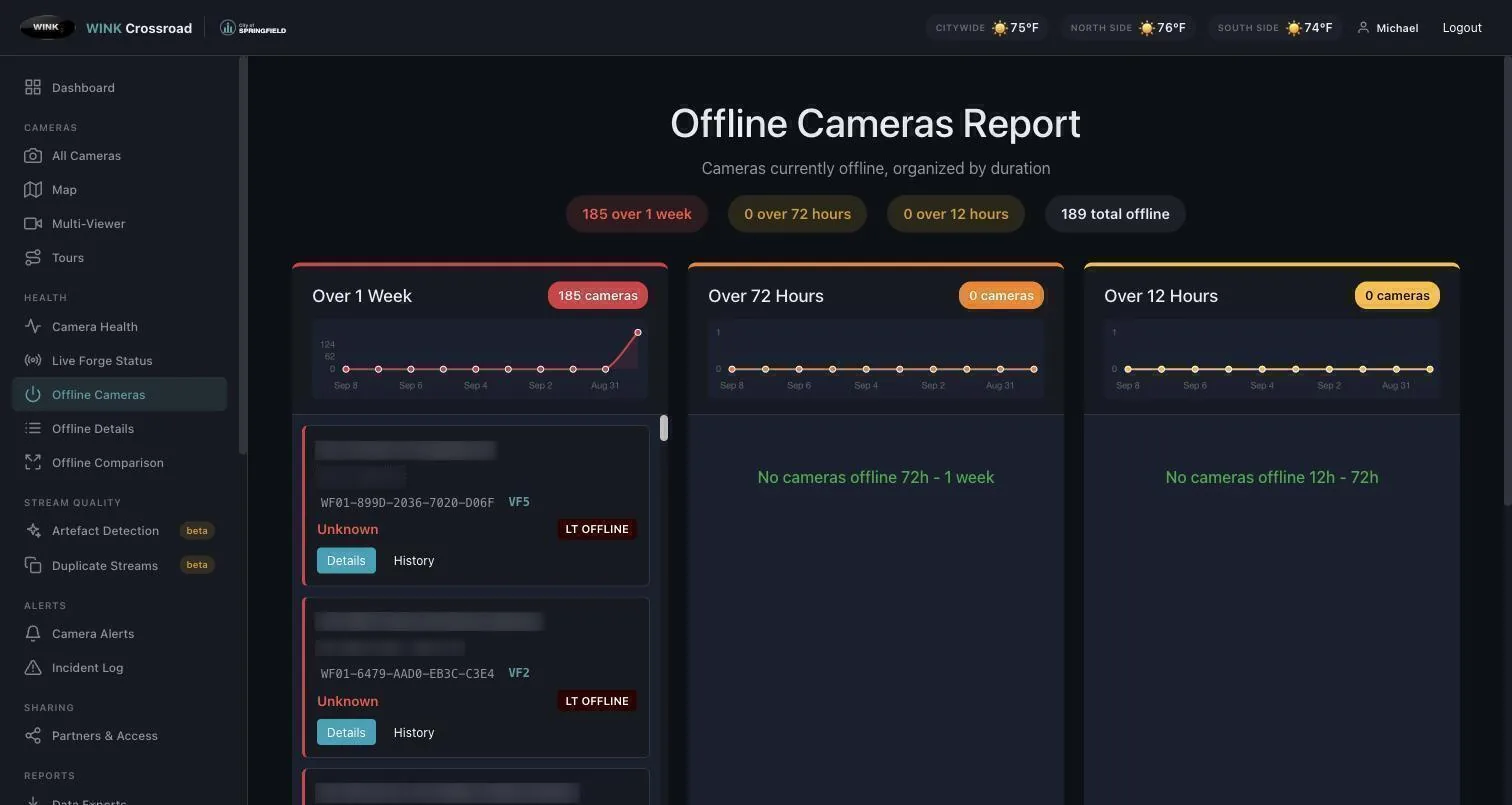

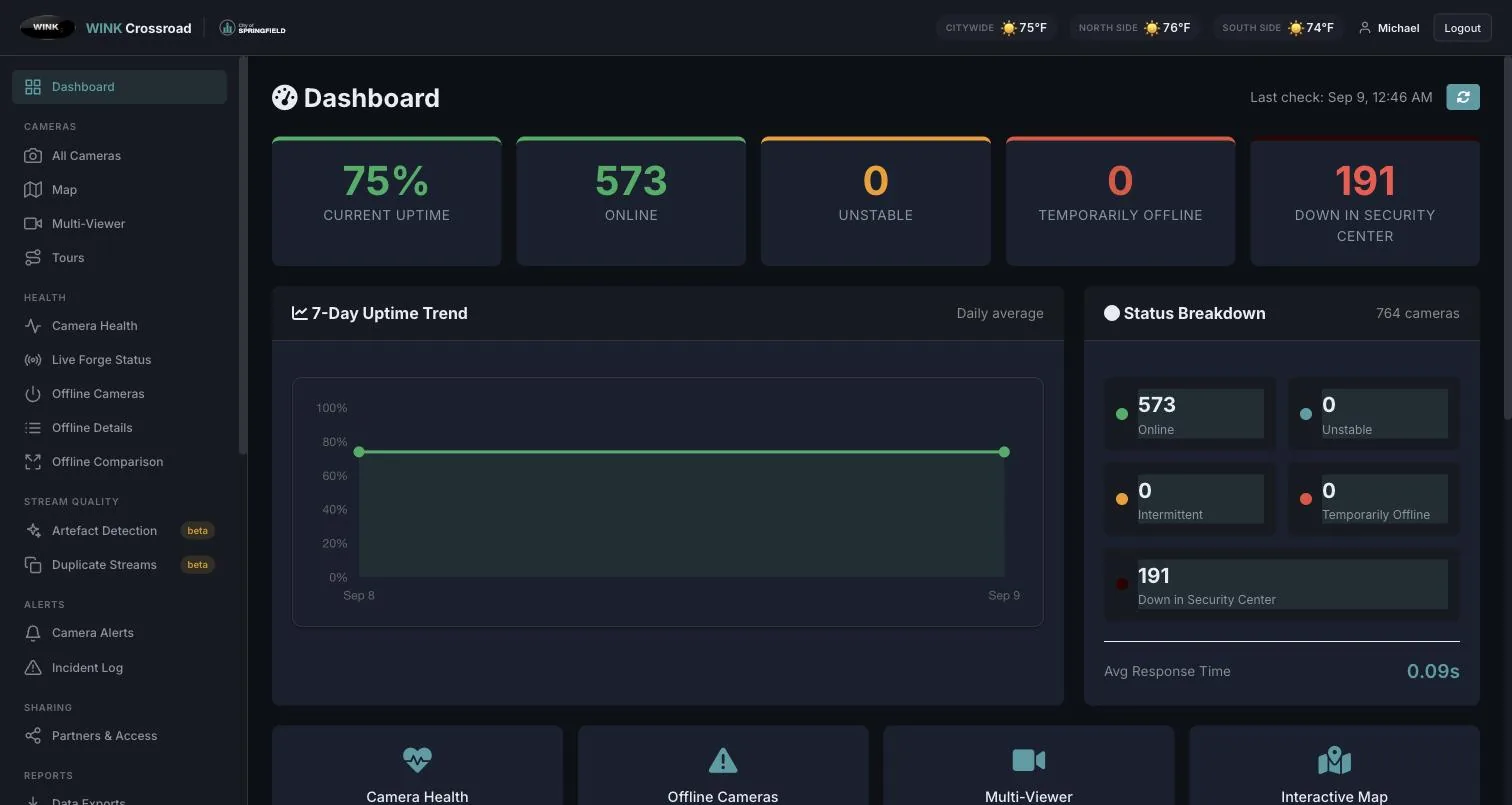

A five state model separates a camera that flaps from one that is genuinely dead, and state survives service restarts. Millions of checks are retained as a queryable uptime time series, so a question about last quarter has an answer rather than an opinion.

OnlineFrame decoded

UnstableIntermittent frames

IntermittentRecurring dropouts

OfflineNo frame

Long-Term OfflineSustained outage

Health is a decoded image, not an answered socket. The placeholder card is the one that hurts most: it satisfies every stream level check ever written.

1 of 2

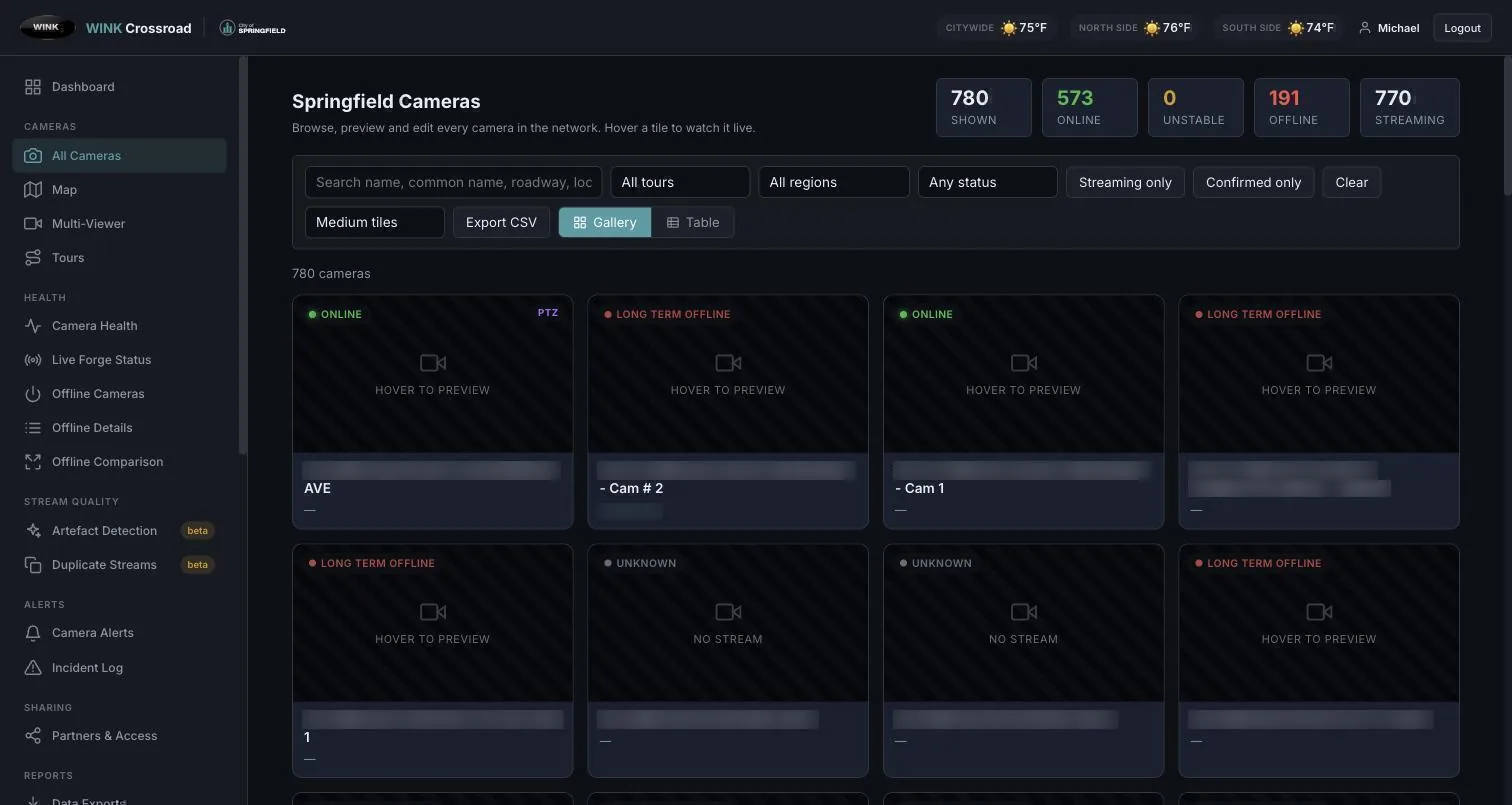

Authoritative Inventory

One master record per camera, combining operational metadata such as name, roadway, milepost, locality, region, orientation, and GPS with VMS identity. Keyed on VMS GUID rather than name matched, which eliminates the duplicate record problem that plagues name based systems. VMS exports ingest automatically, auditably, and idempotently.

Origin and Delivery Checked Separately

An independent probe checks each camera twice, once at the encoder appliance and once through the public media router that partners actually consume. That separates a working camera from a watchable one, and flags placeholder frame cameras that naive monitors report as healthy.

Alerting With a Workflow

Per user subscriptions with percentage of fleet down thresholds, reliable camera down escalation, recovery notifications, fleet wide guardrail alarms, and scheduled daily summaries. Acknowledgement, escalation, and resolution are tracked, duplicates are suppressed, and every notification sent is in the audit trail.

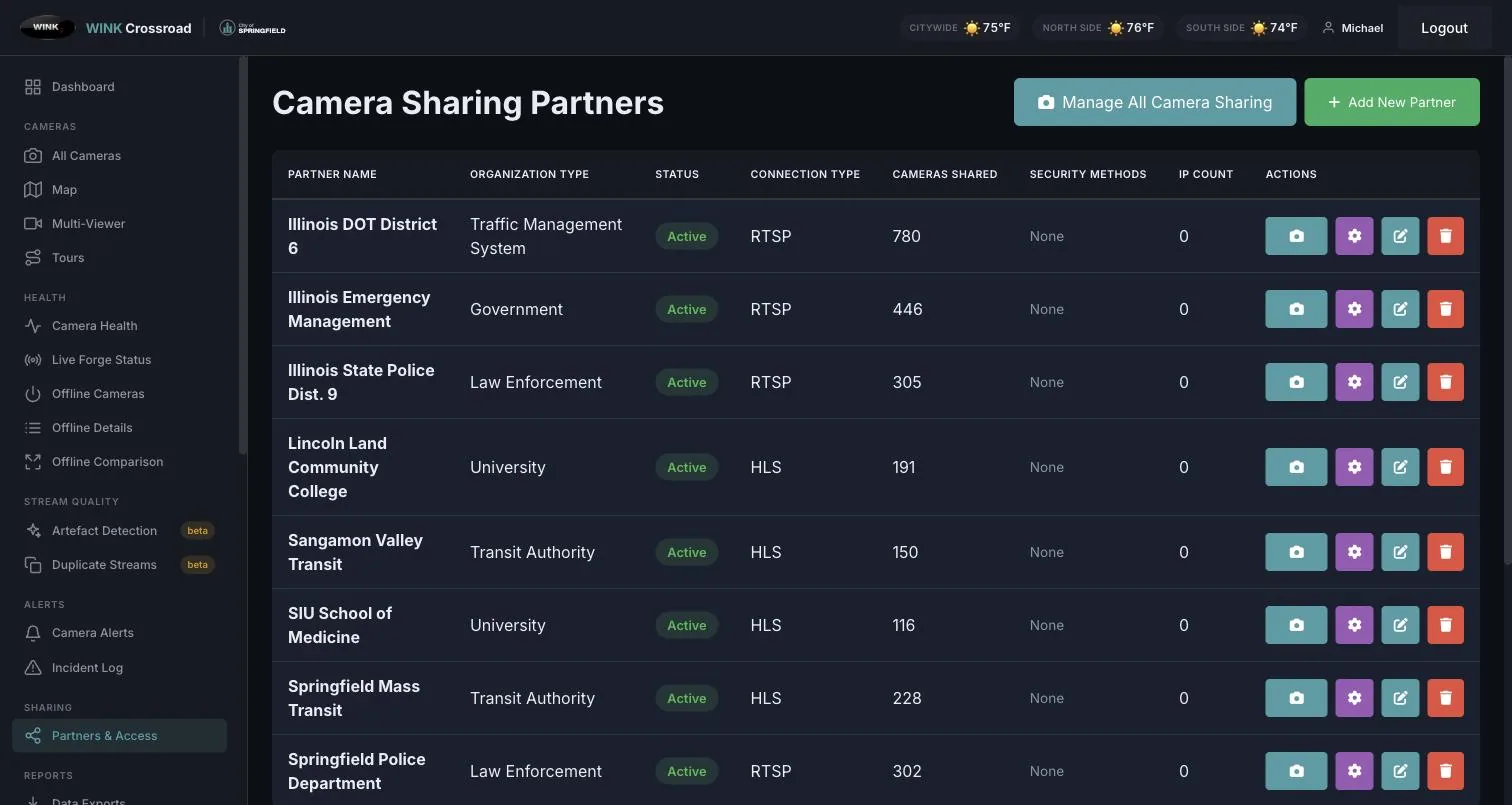

Partner Sharing With Isolation

Partners are first class entities, each with its own connection method, IP whitelist, credentials, and explicitly selected camera set, delivered on an isolated stream endpoint with its own port and credential pair. Access can be granted, rotated, or revoked per partner without disrupting any other consumer.

Public REST API

Key authenticated JSON delivering the deduplicated camera list with metadata, HLS and RTSP stream URLs, PTZ and portable flags, live up or down status, and an always current snapshot image per camera, filterable by status, roadway, PTZ, and camera type. Built for partner self service.

It Generates the Config It Monitors

Encoder configurations are regenerated directly from the same database that holds the inventory, preserving stream identifiers so downstream consumers never break, while excluding decommissioned cameras. Duplicate detection, cross appliance reconciliation, and naming standardization are built in rather than manual.

Reporting and Data Exchange

Charted executive PDF reports generated asynchronously and emailed on completion. Uptime by month, quarter, or year, in summary or per camera detail. An Excel export suite including partner specific workbooks, a master reference, and standard traffic data exchange formats. Every export also runs headlessly.

Operational Workflow

An Excel style bulk editing grid with paste in place, multi select, undo and redo, and validation. Bulk tour assignment, per camera comment threads, field verification flags, an under investigation workflow, and a manual incident log with severity, root cause, and resolution tracking.

Frame Quality Analysis

Automated detection of black screens, "No Video" screens, and frozen or uniform frames that a stream level check would pass. Perceptual fingerprinting identifies cameras erroneously publishing identical video, which is almost always a configuration error upstream rather than a coincidence.

Technical Brief

The VMS Belongs in the Cloud. The Video Does Not.

WINK Streaming · Platform architecture

Video management systems were historically installed next to the cameras, with a client application on every workstation. That made sense when video never left the site. It stops making sense when the estate spans a state, partners need access, and the people responsible for the system are not in the room with it.

What stays local, deliberately

Crossroad is not in the video path. Streams flow from Media Router to the viewer directly, authenticated per session. If the management plane is unavailable, cameras keep publishing and routers keep serving; you lose configuration and visibility, not the operational picture. For agencies evaluating any cloud VMS, that is the question worth asking first.

Health means a decoded frame

A conventional VMS knows whether it can reach a camera. It does not know whether the picture is usable, and it certainly does not know whether a partner on the far side of the distribution layer can watch it. Crossroad decodes a real frame at the encoder and again through the public path. When the two disagree, the disagreement is the finding, and it is the one agencies normally discover only when somebody calls.

In practice: a statewide DOT

Several hundred cameras, four agencies sharing them, and a public 511 portal. Access is a browser and an account rather than a workstation build and a VPN profile, and it is revocable centrally the day somebody leaves. A camera publishing a "No Video" placeholder is flagged as offline the same afternoon rather than after a member of the public reports a black tile.

Related: WINK Forge for the encoding path, WINK Media Router for distribution, and the API Reference Manual for session authentication. Contact us for a walkthrough against your own estate.
