Publish Anything, to Anyone, in Whatever Format They Speak

Media Router is the distribution half of the platform. It takes streams in over any common protocol and codec, publishes them back out in whatever the consumer requires, and sits as a boundary between your camera network and everyone who needs to watch, so each partner, portal, and mobile user gets exactly the feeds they are entitled to and nothing else.

Deployments run to 20,000 cameras and more, with health monitoring, alerting, and reporting across the estate.

Request Demo Read the Technical Brief

Overview

What WINK Media Router Is

A proxy layer for camera video, built so that giving somebody access to a feed never means giving them access to the network the camera lives on.

Every agency that owns cameras eventually gets asked to share them. A neighboring department wants a few intersections during an incident. A news station wants the highway feeds. The public wants a portal. The path of least resistance is to hand out RTSP URLs and camera credentials, and that path ends with credentials in a spreadsheet, no idea who is watching, and a compromised partner becoming your incident.

Media Router replaces that with a controlled boundary. Streams arrive from Forge or directly from cameras, and go out on isolated endpoints for each consumer, authenticated per session with one time tokens or by IP where the consumer is a fixed system. Access is granted, changed, and revoked centrally, and every session is logged.

It is also a format engine in its own right. Every common video codec goes in and comes out again, H.264 through H.265, AV1, VP8 and VP9, MPEG-4, MJPEG and MPEG-1 or 2, with AAC, Opus, MP3, AC-3 and G.711 on the audio side, published over RTMP, RTSP, HLS, MPEG-DASH, SRT, WebRTC, and MPEG-TS. Where a receiving system will only talk to a camera, the router can present itself as one.

Around distribution sits the operational layer that a camera estate of this size needs: a searchable camera directory, tours, continuous health monitoring, alerting with configurable thresholds, live multi-camera viewing, coverage maps, and reporting that can be handed to somebody who does not work in video. For fleets that need formal governance on top, including inventory keyed to your VMS and independent verification of what partners can actually see, WINK Crossroad adds that layer from the cloud.

At a Glance

20,000+ cameras in a single deployment
Per session tokens so nothing permanent is handed out
Isolated endpoints per partner or agency
Every common codec in and out, video and audio
Camera protocol emulation for VMS platforms that need it
24/7 health monitoring with configurable alerting
Five tier permissions with per camera grants
Native Genetec Security Center integration
Cloud, on premise, or hybrid deployment

Access Control

Authentication That Expires on Its Own

The default answer for web viewers is a one time password token, created per viewer session and appended to the playlist request. Nothing permanent is issued, so nothing permanent has to be chased when access ends.

OTP Tokens

Tokens are created through the API with a duration in minutes, extended while a session is still watching, and destroyed on demand. They are valid across every router in the deployment, so a viewer needs one token rather than one per node. Full detail is in the API Reference Manual.

IP Whitelisting

For fixed systems such as a partner VMS or an emergency operations center, network level access is simpler than token handling. Whitelisted sources are still subject to behavioral monitoring, with automatic temporary blocking when usage patterns go abnormal.

Roles and Grants

A five tier permission model with per camera grants down to the individual user, session management, and partner organization sharing that does not require the partner to hold an account on your VMS.

Access Control Lists

Publish and playback are controlled separately. A publish ACL governs which addresses may push a stream into the router, and a playback ACL governs which may pull it out, both by IP or range.

Every stream carries a globally unique identifier with collision avoidance, so a stream name is never ambiguous across routes or routers. Transport is encrypted, permissions are checked per request, and access and configuration changes are both in the audit trail.

						Inter-Agency Sharing
						Cross jurisdiction distribution
Public and private stream separation
Emergency access procedures
Permission based distribution lists
Citizen access controls for public portals



Protocols

In From Anything, Out to Anything

Input
MPEG transport stream over UDP and RTP
RTMP ingest
RTSP sources
HLS input
WebRTC sources

Output
MPEG-TS with RTP and UDP
HLS with dynamic segmentation
RTMP distribution
WebRTC output
MPEG-DASH delivery

For Web Viewers

HLS with OTP authentication. Works in any browser, survives the public internet, and expires by itself.

For a Partner VMS

RTSP with IP whitelisting. Native support in the receiving system, sub-second latency, no credentials in URLs.

For Broadcast

SRT with a pre-shared key, where the receiving end has a compatible decoder and the quality bar is a production one.

Formats

Every Common Codec, In and Out

A distribution layer that only speaks one codec pushes the conversion problem back onto the camera estate. Media Router accepts and emits the formats that are actually in service.

Video
H.264 / AVC	All profiles, baseline required for WHIP
H.265 / HEVC	Main and Main10
AV1	Next generation compression
VP9	WebRTC and YouTube compatible
VP8	Legacy WebRTC
MPEG-4	Legacy cameras
MJPEG	Low latency, high bandwidth
MPEG-1 and MPEG-2	Broadcast compatibility

Audio
AAC	High quality, widely supported
Opus	WebRTC
MP3	Legacy compatibility
AC-3	Broadcast and theatrical
G.711, PCMU and PCMA	Telephony and intercom sources

Every codec listed is supported in both directions

Input and output, so a deployment can standardize its public delivery without re-specifying its cameras.

Camera Protocol Emulation

Some VMS platforms will only accept a camera. Media Router can be that camera, responding as the manufacturer's own device would:

Axis, VAPIX API emulation, the most comprehensive
Panasonic i-PRO
Sony VISCA over IP and CGI commands
Hikvision ISAPI
Dahua HTTP API
Bosch BVIP

What That Solves

Connecting modern streams to an older VMS that will never be upgraded
Sharing cameras between VMS platforms that do not speak to each other
Translating a format the receiving system does not support
Presenting a cloud stream to an on premise system as a local camera

Emulation requires the appropriate licensing. Configuration detail is in the WINK Video Bridging Manual.

Camera Operations

Running Twenty Thousand Cameras

Camera Directory

Search across the whole estate
Tour manager for camera groups
Hardware inventory tracking
Naming standardization tools
Support for 20,000+ cameras

Health Monitoring

Continuous checking, 24 hours a day
Multi-stage detection before a camera is called down
Uptime history rather than current state alone
Live status indicators across views
Evidence to take back to the camera owner

Alerting

Customizable thresholds per subscription
Email delivery with a log of what was sent
Daily summary reports
Uptime based escalation
Notification of recovery, not just failure

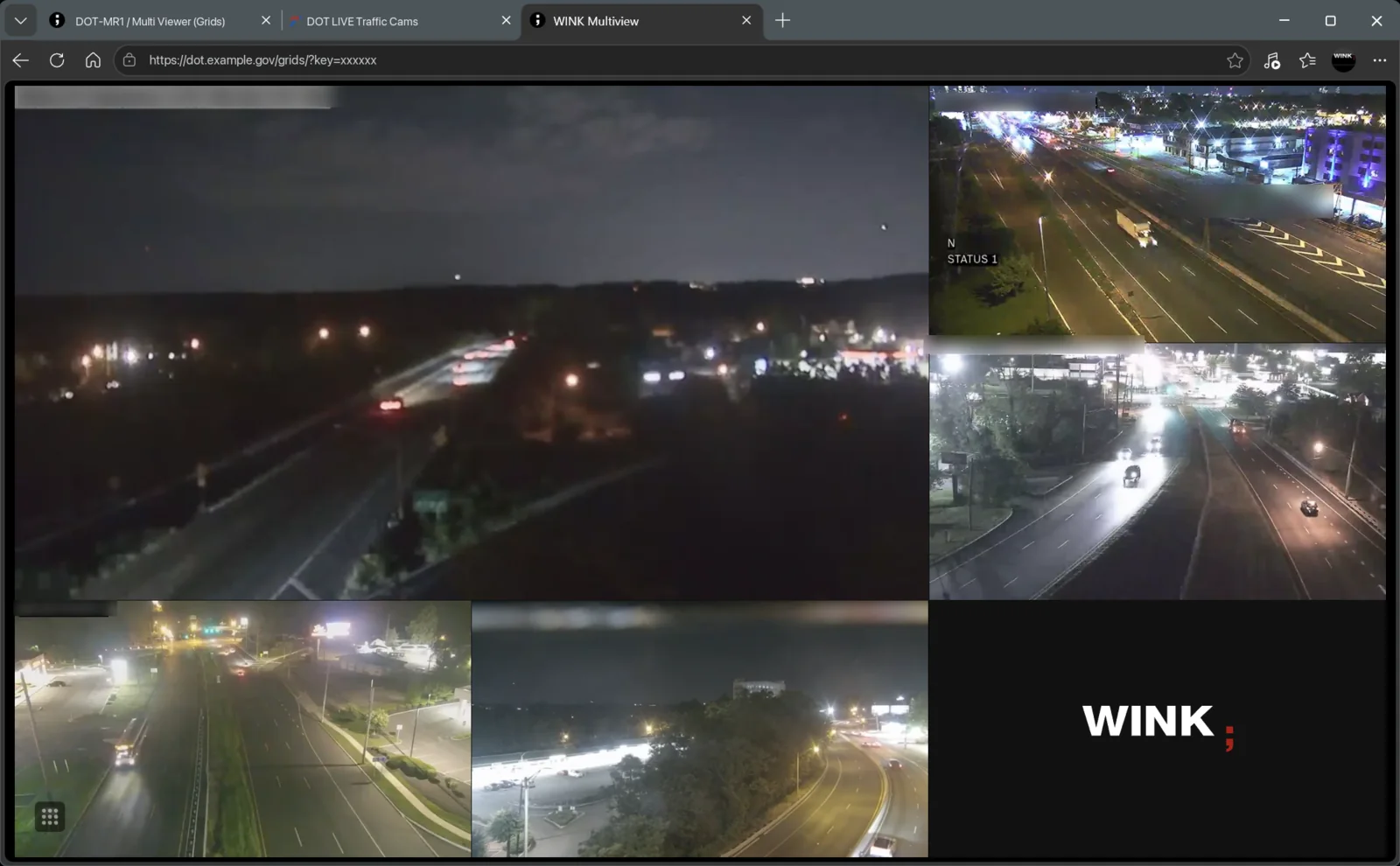

Live Monitoring

Real time camera previews
Multi-camera viewer
Interactive location map
Coverage heatmap analysis
Grid and list views

Reporting

Executive PDF reports with charts
CSV export
User activity and IP logs
Network statistics dashboard
Bandwidth and connection analysis

Fleet Governance

Where the estate needs an authoritative inventory keyed to your VMS, frame level health verification, and independent checking of what each partner can actually see, WINK Crossroad adds that governance layer on top of the routers.

Add-Ons

Analytics on Streams Already Flowing

Both add-ons process video directly from Media Router, so adding intelligence does not mean adding infrastructure or pulling a second copy of every stream.

WINK Analytics

Motion detection and object tracking
License plate recognition
People counting and crowd analysis

Learn about Analytics

WINK Traffic and LPR

Real time traffic flow analysis
Incident detection and alerting
Queue length measurement

Explore Traffic and LPR

Infrastructure

Built to Sit in a Rack for Years

High Availability

VRRP with matching router IDs
Shared virtual IP for clients
Primary and secondary or load balanced
Geographic distribution across sites

Network

Interface bonding with selectable modes
MTU tuning for high throughput paths
Documented required and optional ports
SSL certificate management

Monitoring and Tools

System, network, memory, and CPU graphs
Log access from the web interface
Packet capture and network diagnostics on the box
REST API for control and integration

Technical Brief

The Proxy Boundary, and Why Every Sharing Request Should Hit It

WINK Streaming · Video distribution architecture

Direct camera access is always the first thing a partner asks for. It is simple to explain and costs them nothing to implement. It is also the arrangement that produces credentials in a spreadsheet, connection counts nobody controls, and a security boundary that now includes an organization you cannot audit.

Isolation is what makes revocation possible

The property that matters is blast radius. When ten partners share one endpoint and one credential, a rotation affects all ten, so in practice it never happens. When each partner has its own endpoint, port, credential pair, IP whitelist, and camera set, ending one relationship is a single operation with no side effects. Per session OTP tokens extend the same idea to individual viewers: nothing long lived is issued, so nothing long lived can leak.

Give each consumer the protocol it actually speaks

Web viewers get HLS with a token and accept a few seconds of latency in exchange for playing everywhere. A partner VMS gets RTSP with IP whitelisting, because that is native to the receiving system. Broadcast gets SRT with a key. One warning worth stating plainly, because it accounts for a large share of support cases: putting a general purpose CDN or web application firewall in front of a live video endpoint frequently breaks it.

In practice: a news station during an incident

The station needs twelve highway cameras for the duration of a closure. They get their own endpoint, their own credentials, and exactly those twelve cameras, with viewers authenticated per session. Their playout system will only accept an Axis camera, so the router presents itself as one. When the closure ends, access is withdrawn in one operation. No other partner notices, no camera credential changed, and the access log shows precisely what was watched and when.

More detail: the Camera Sharing and Partner Integration Guide, the API Reference Manual for token mechanics, and the Firewall and Network Configuration Guide for the port tables.
